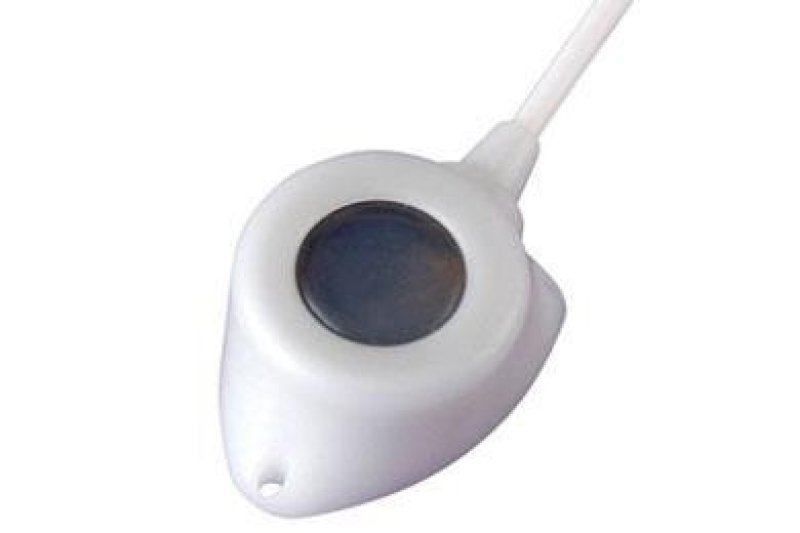

Standard Port 4000 series; It is an adult venous implantable port with a peelable introducer (7 Fr, 8 Fr, 9 Fr or 10 Fr) applied percutaneously.
Base Diameter: 30.8mm x 22.6mm
Septum Diameter: 12.1mm
Weight: 7.6g
Port Height: 12.2mm
Non-pre-connected catheter port with options made of silicone (4008 ISP and 40010 ISP codes) or polyurethane (4017 ISP, 4018 ISP, 4019 ISP codes).
Port with pre-connected catheter, with options made of silicone (codes 4108 ISP and 41010 ISP) or polyurethane (codes 4117 ISP, 4118 ISP, 4119 ISP).
| Code | Fr. | Outside Diameter | Inner Diameter | Size | Internal Volume | Port Volume | Connected | introducer |
|---|---|---|---|---|---|---|---|---|
| 4008 ISPs | 7.2 | 2.40 | 1.20 | 60 | 0.13 | 0.6 | - | 8 |
| 4108 ISPs | 7.2 | 2.40 | 1.20 | 60 | 0.13 | 0.6 | X | 8 |
| 40010 ISPs | 9.5 | 3.18 | 1.57 | 60 | 0.22 | 0.6 | - | 10 |
| 41010 ISPs | 9.5 | 3.18 | 1.57 | 60 | 0.22 | 0.6 | X | 10 |
| Code | Fr. | Outside Diameter | Inner Diameter | Size | Internal Volume | Port Volume | Connected | introducer |
|---|---|---|---|---|---|---|---|---|
| 4017 ISPs | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.58 | - | 7 |
| 4117 ISPs | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.58 | X | 7 |
| 4018 ISPs | 8 | 2.65 | 1.70 | 60 | 0.24 | 0.59 | - | 8 |
| 4118 ISPs | 8 | 2.65 | 1.70 | 60 | 0.24 | 0.59 | X | 8 |
| 4019 ISPs | 9 | 3.0 | 1.90 | 60 | 0.30 | 0.50 | - | 9 |
| 4119 ISPs | 9 | 3.0 | 1.90 | 60 | 0.30 | 0.50 | X | 9 |
