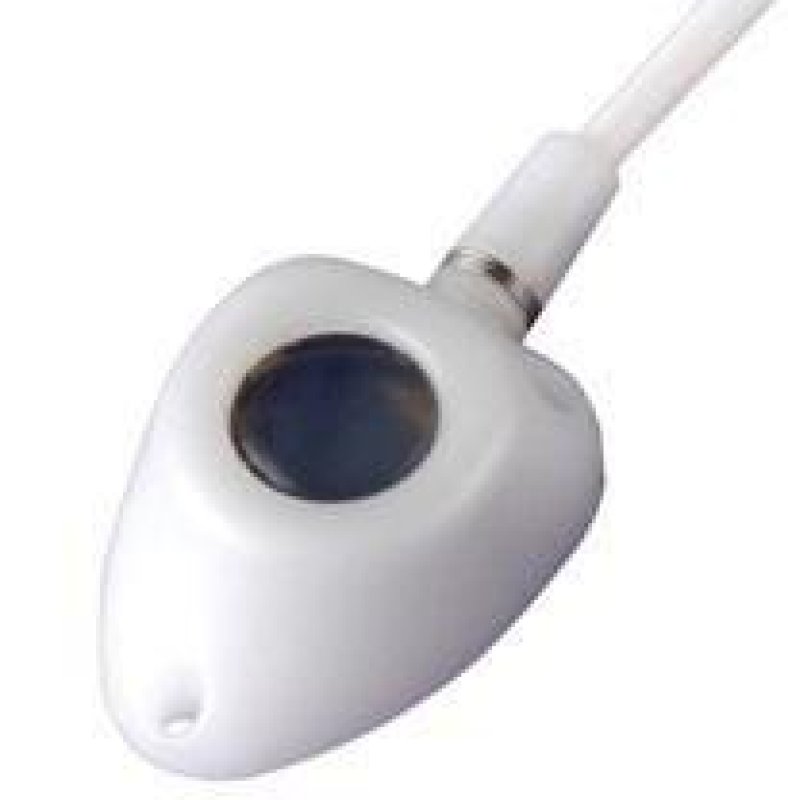

Polysite 2000 ISP
The Micro Port 2000 ISP series is an adult or pediatric venous implantable port with a peelable introducer (5 Fr, 6 Fr, or 7 Fr) that is applied percutaneously.
Base diameter: 22.0 mm x 17.0 mm
Septum diameter: 7.8 mm
Weight: 2.9g
Port height: 8.7 mm
Two connection options are available: a non-preconnected catheter port in silicone (codes 2005 ISP and 2007 ISP) or polyurethane (codes 2015 ISP and 2016 ISP) and a preconnected catheter port in silicone (codes 2105 ISP and 2107 ISP) or polyurethane (codes 2115 ISP and 2116 ISP).
Each percutaneous Polysite ISP kit; Includes micro port, catheter, connecting rings, Huber needle, vessel lift apparatus, flushing connector, syringe, J guide wire, introducer needle, tunneler and peelable introducer.
It does not contain latex. It does not contain DEHP. It does not contain biological or animal-based products.
| CODE | CATHETER SIZE (Fr) | OUTER DIAMETER (mm) | INNER DIAMETER (mm) | HEIGHT (cm) | PORT VOLUME (ml) | PRE-CONNECTED | INTRODUCER SHEATH (Fr) |
|---|---|---|---|---|---|---|---|
| 2005 ISP | 5 | 0.65 | 0.04 | 60 | 0.2 | - | 5 |
| 2105 ISPs | 5 | 0.65 | 0.04 | 60 | 0.2 | X | 5 |
| 2007 ISP | 6.5 | 1.02 | 0.09 | 80 | 0.2 | - | 7 |
| 2107 ISPs | 6.5 | 1.02 | 0.09 | 80 | 0.2 | X | 7 |
| CODE | CATHETER SIZE (Fr) | OUTER DIAMETER (mm) | INNER DIAMETER (mm) | HEIGHT (cm) | PORT VOLUME (ml) | PRE-CONNECTED | INTRODUCER SHEATH (Fr) |
|---|---|---|---|---|---|---|---|
| 2015 ISP | 5 | 1.65 | 1.05 | 60 | 0.1 | - | 5 |
| 2115 ISPs | 5 | 1.65 | 1.05 | 60 | 0.1 | X | 5 |
| 2016 ISP | 6 | 2.00 | 1.30 | 80 | 0.14 | - | 6 |
| 2116 ISPs | 6 | 2.00 | 1.30 | 80 | 0.14 | X | 6 |
