Smart Midline Catheter
Smart Midline is a single-lumen polyurethane peripheral catheter developed for midline vascular access. It is indicated for the safe administration...
Discover

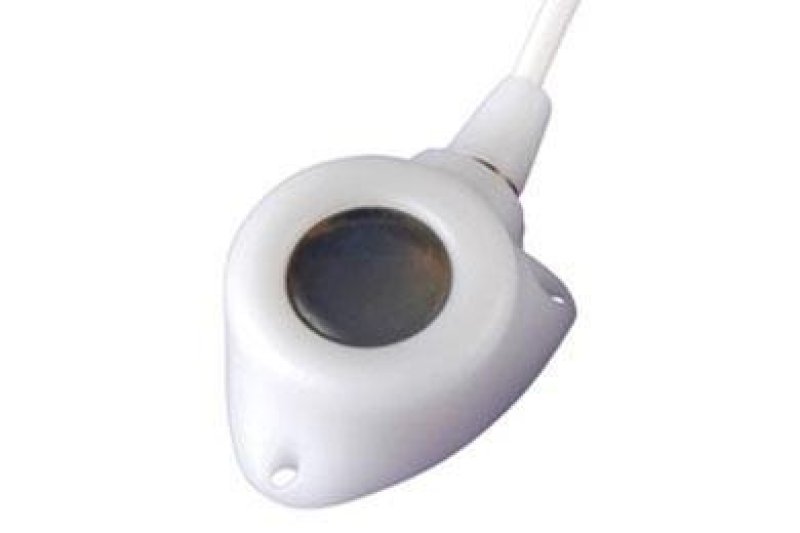

MiniPort 3000 series; It is an adult venous implantable port with a surgically applied peelable introducer (7 Fr or 8 Fr).
Base Diameter: 25.8mm x 20.9mm
Septum Diameter: 10.5mm
Weight: 5g
Port Height: 10.1mm
Available connection options:
Non-pre-connected catheter port with options made of silicone (codes 3007 and 3008) or polyurethane (code 3017).
Port with pre-connected catheter, with options made of silicone (codes 3107 and 3108) or polyurethane (code 3117).
Set content:
Mini port with silicone septum, titanium reservoir and POM (polyoxymethylene) outer layer,
60 cm XRO silicone or polyurethane catheter,
Numbered markings every 5 cm and grading marks every cm from 5 cm to 40 cm,
Two connecting rings with nickel-containing Phynox threads (one for pre-connected ports),
Straight Huber needle (22 G),
Vascular removal apparatus,
Flush connector connected to catheter (for ports not previously connected).
Contains latex: No
Contains DEHP: No
Contains biological or animal-based product: No
| CODE | CATHETER SIZE (Fr) | CATHETER OUTER DIAMETER (mm) | CATHETER INNER DIAMETER (mm) | CATHETER LENGTH (cm) | CATHETER INTERNAL VOLUME (ml) | PORT INTERNAL VOLUME (ml) | PRE-CONNECTED |
|---|---|---|---|---|---|---|---|
| 3007 | 6.5 | 2.16 | 1.02 | 60 | 0.09 | 0.6 | - |
| 3107 | 6.5 | 2.16 | 1.02 | 60 | 0.09 | 0.6 | X |
| 3008 | 7.2 | 2.40 | 1.20 | 60 | 0.13 | 0.6 | - |
| 3108 | 7.2 | 2.40 | 1.20 | 60 | 0.13 | 0.6 | X |
| CODE | CATHETER SIZE (Fr) | CATHETER OUTER DIAMETER (mm) | CATHETER INNER DIAMETER (mm) | CATHETER LENGTH (cm) | CATHETER INTERNAL VOLUME (ml) | PORT INTERNAL VOLUME (ml) | PRE-CONNECTED | INTRODUCER SHEATH (Fr) |
|---|---|---|---|---|---|---|---|---|
| 3017 | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.37 | - | 7 |
| 3117 | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.37 | X | 7 |
Smart Midline is a single-lumen polyurethane peripheral catheter developed for midline vascular access. It is indicated for the safe administration...
Discover
Polysite 2000 The Micro Port 2000 series is an adult or pediatric venous implantable port with a surgically applied peelable introducer (5 Fr, 6 Fr...
Discover
Polysite 2000 ISP The Micro Port 2000 ISP series is an adult or pediatric venous implantable port with a peelable introducer (5 Fr, 6 Fr, or 7 Fr) ...
Discover
Polysite 3000 ISP MiniPort 3000 series; It is an adult venous implantable port with a peelable introducer (7 Fr or 8 Fr) applied percutaneously. Ba...
Discover
Polysite 4000 Standard Port 4000 series; It is an adult venous implantable port with a surgically applied peelable introducer (7 Fr, 8 Fr, 9 Fr or ...
Discover
Polysite 4000 ISP Standard Port 4000 series; It is an adult venous implantable port with a peelable introducer (7 Fr, 8 Fr, 9 Fr or 10 Fr) applied ...
DiscoverFill out the form to get detailed information about this product.
