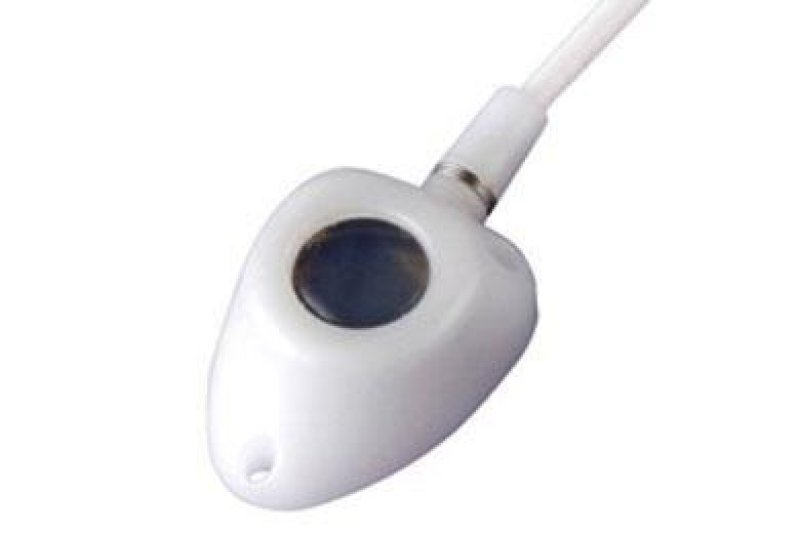

Polysite 2000
The Micro Port 2000 series is an adult or pediatric venous implantable port with a surgically applied peelable introducer (5 Fr, 6 Fr, or 7 Fr).
Base diameter: 22.0 mm x 17.0 mm
Septum diameter: 7.8 mm
Weight: 2.9g
Port height: 8.7 mm
Two types of connection options are available: a silicone (codes 2005 and 2007) or polyurethane (codes 2015 and 2016) non-preconnected catheter port, and a silicone (codes 2105 and 2107) or polyurethane (codes 2115 and 2116) pre-connected catheter port.
Each surgical Polysite kit; Includes micro port with silicone septum, titanium reservoir and POM outer layer, 60 cm or 80 cm XRO catheter, connecting rings, Huber needle, vascular lift apparatus and flushing connector.
It does not contain latex. It does not contain DEHP. It does not contain biological or animal-based products.
| CODE | CATHETER SIZE (Fr) | OUTER DIAMETER (mm) | INNER DIAMETER (mm) | HEIGHT (cm) | PORT VOLUME (ml) | PRE-CONNECTED |
|---|---|---|---|---|---|---|
| 2005 | 5 | 0.65 | 0.04 | 60 | 0.2 | - |
| 2105 | 5 | 0.65 | 0.04 | 60 | 0.2 | X |
| 2007 | 6.5 | 1.02 | 0.09 | 80 | 0.2 | - |
| 2107 | 6.5 | 1.02 | 0.09 | 80 | 0.2 | X |
| CODE | CATHETER SIZE (Fr) | OUTER DIAMETER (mm) | INNER DIAMETER (mm) | HEIGHT (cm) | PORT VOLUME (ml) | PRE-CONNECTED |
|---|---|---|---|---|---|---|
| 2015 | 5 | 1.65 | 1.05 | 60 | 0.1 | X |
| 2115 | 5 | 1.65 | 1.05 | 60 | 0.1 | - |
| 2016 | 6 | 2.00 | 1.30 | 80 | 0.14 | - |
| 2116 | 6 | 2.00 | 1.30 | 80 | 0.14 | X |
