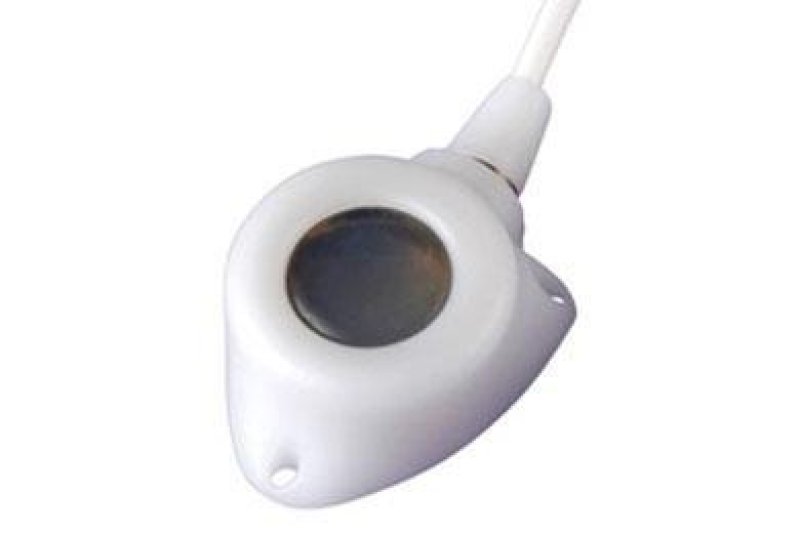

MiniPort 3000 series; It is an adult venous implantable port with a peelable introducer (7 Fr or 8 Fr) applied percutaneously.
Base Diameter: 25.8mm x 20.9mm
Septum Diameter: 10.5mm
Weight: 5g
Port Height: 10.1mm
Available connection options:
Non-pre-connected catheter port with options made of silicone (3007 ISP and 3008 ISP codes) or polyurethane (3017 ISP code).
Port with pre-connected catheter, with options made of silicone (codes 3107 ISP and 3108 ISP) or polyurethane (code 3117 ISP).
Percutaneous kit content:
Mini port with silicone septum, titanium reservoir and POM (polyoxymethylene) outer layer,
60 cm XRO silicone or polyurethane catheter,
Numbered markings every 5 cm and grading marks every cm from 5 cm to 40 cm,
Phynox threaded connecting rings containing nickel,
Straight Huber needle (22 G),
Vascular removal apparatus,
Flush connector (for ports not previously connected),
10 ml syringe,
J guide wire (0.035″ – 60 mm),
Piercing needle 18 G – 70 mm,
Tunnel opener 2.5 mm – 23 cm,
Peelable introducer – 17 cm.
Contains latex: No
Contains DEHP: No
Contains biological or animal-based product: No
| CODE | CATHETER SIZE (Fr) | CATHETER OUTER DIAMETER (mm) | CATHETER INNER DIAMETER (mm) | CATHETER LENGTH (cm) | PORT INTERNAL VOLUME (ml) | PRE-CONNECTED | INTRODUCER SHEATH (Fr) |
|---|---|---|---|---|---|---|---|
| 3007 ISPs | 6.5 | 2.16 | 1.02 | 60 | 0.09 | X | 7 |
| 3107 ISPs | 6.5 | 2.16 | 1.02 | 60 | 0.09 | - | 7 |
| 3008 ISPs | 7.2 | 2.40 | 1.20 | 60 | 0.13 | X | 8 |
| 3108 ISPs | 7.2 | 2.40 | 1.20 | 60 | 0.13 | - | 8 |
| CODE | CATHETER SIZE (Fr) | CATHETER OUTER DIAMETER (mm) | CATHETER INNER DIAMETER (mm) | CATHETER LENGTH (cm) | CATHETER INTERNAL VOLUME (ml) | PORT INTERNAL VOLUME (ml) | PRE-CONNECTED | INTRODUCER SHEATH (Fr) |
|---|---|---|---|---|---|---|---|---|
| 3017 ISPs | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.37 | - | 7 |
| 3117 ISPs | 7 | 2.30 | 1.45 | 60 | 0.18 | 0.37 | X | 7 |
