Techniplex

Techniplex

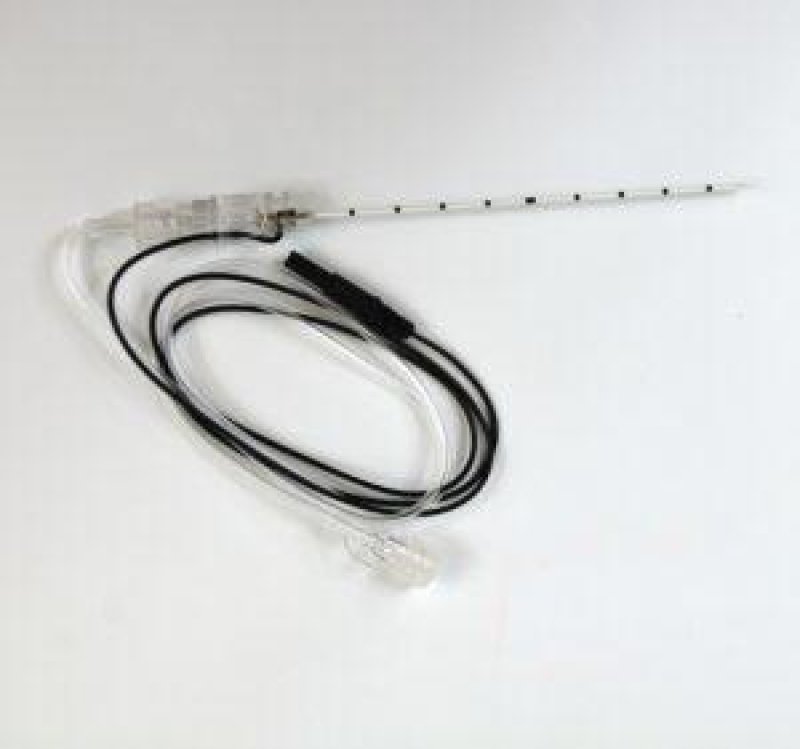

Techniplex is a kit that allows nerve localization using a neurostimulation needle and subsequent placement of the catheter through the needle.

This set is designed for continuous plexus and peripheral nerve blocks. It is possible to insert the peri-nerve catheter via a Locoplex type needle with a 17° bevel, a 30° short bevel or a Tuohy bevel needle.

The Techniplex set includes: Locoplex type needle with centimetric markings and insulating coating, electrical cable with female tip and transparent extension line 50 cm long (dead volume: 1 ml). 30° inclined (code 5195.xx3 and 5195.xx31), Tuohy inclined (code 5195.xx6) or 17° inclined (code 5195.xx) options are available. Contains a transparent PEBA (polyether blockamide) catheter tube with X.R.O line with easy-lock connector. The catheter has a diameter of 0.45 x 0.85 mm and a length of 50 cm.

Techniplex Codes

• 5195.10 – 50 cm – 100 mm – 18G – 17°
• 5195.103 – 50 cm – 100 mm – 18G – 30°
• 5195.1031 – 50 cm – 100 mm – 18G – 30°
• 5195.106 – 50 cm – 100 mm – 17G – Tuohy
• 5195.12 – 50 cm – 120 mm – 18G – 17°
• 5195.123 – 50 cm – 120 mm – 18G – 30°
• 5195.1531 – 50 cm – 150 mm – 18G – 30°
• 5195.156 – 50 cm – 150 mm – 17G – Tuohy
• 5195.35 – 50 cm – 35 mm – 18G – 17°
• 5195.353 – 50 cm – 35 mm – 18G – 30°
• 5195.50 – 50 cm – 50 mm – 18G – 17°
• 5195.503 – 50 cm – 50 mm – 18G – 30°
• 5195.5031 – 50 cm – 50 mm – 18G – 30°
• 5195.506 – 50 cm – 50 mm – 17G – Tuohy
