F&P 950™ Humidification System

Advanced technology to meet your challenges

We designed the F&P 950™ System to solve many of the trouble points you may have experienced while maintaining your current device.How many of these pain points are you familiar with? Condensation in the circuit, damaged or lost probes, complex installation, elusive alarm indication and limited temperature adjustability.

• Integrated Probes
  Temperature and flow probes have been integrated into the respiratory handle and sensor cartridge, facilitating the installation of the F&P 950 Systemspecies. The integrated patient tip temperature sensor is discarded together with the disposable circuit, eliminating the need for disinfection or sterilization.


•

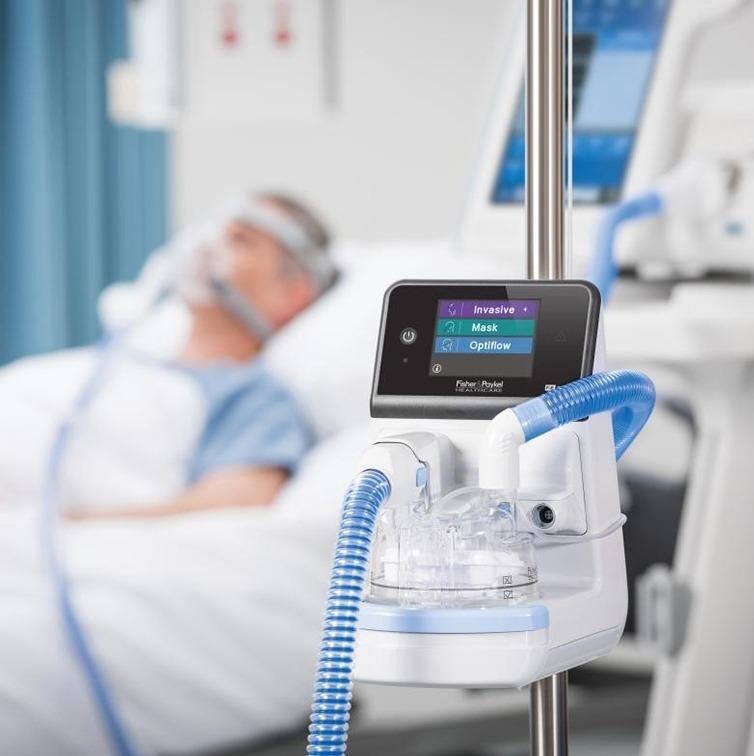

  Interactive touchscreen
  When the adult circuit is connected, the interactive touchscreen offers the ability to choose between Invasive, Mask and Optiflow™ modes via the drop-down menu. When working in mask or Optiflow mode, the temperature can be adjusted to support the patient's comfort.
•
  Less mounting connection


  The number of connections is limited to ensure easy installation and reduce the possibility of system alarm caused by incorrect installation.

  * Compared to F&P 850 System

•
  Thermadapt technology
  A 1.75 meter long neonatal respirator incorporates Thermadapt™ technology, eliminating the need for an unheated extension.Different heating zones make it possible for the breathing circuit to automatically adapt to changing ambient conditions, such as incubators and baby warmers.

•

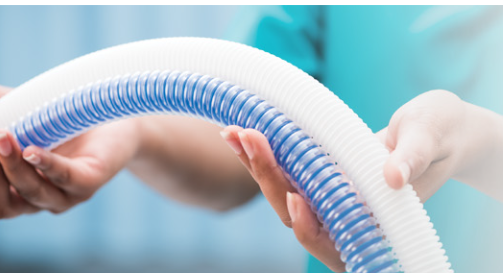

  Air Spiral inspiratory
  AirSpiral™ technology protects humidified gases from ambient conditions using air insulation pockets located along the inspiratory arm and integrated wall heatingspecies. Compared to a traditional inspiratory arm, this technology helps to reduce condensation formation, while smooth inner walls increase resistance to flow.
•
  Evaqua 2 expiratory
  Evaqua™ technology minimizes condensation by allowing moisture to pass freely through the wall of the expiratory tube and preventing the spread of pathogens. Compared to a conventional expiratory tube, this technology reduces condensation in the expiratory filter and helps reduce ventilation problems caused by mobile condensation.

•
  SeniDomes
  SensiDomes™ are silicone covers that are stretched over temperature and flow probes attached to the sensor cartridge and placed on the wall of the dampening chamber. These ensure accurate measurement while creating a microbial barrier between the probes and the humidified gases.No disinfection or sterilization is required as the probes are not exposed to humidified gases.
•
  Intuitive alarms
  Animations or text are displayed on the touch screen when the device goes into alarm and the corrective action required to correct the problem on the device is clearly indicated.
